New Assembly Approach Generates Most Complex Stomach Organoids to Date

Research By Alexandra Eicher, PhD, James Wells, PhD

Post Date: December 1, 2021 | Publish Date: Dec. 1, 2021

→

This confocal image shows a three-layer stomach organoid that had been transplanted into a mouse. This organoid was imaged at 14 weeks.

All these individual components are needed in order to generate stomach tissue with the proper complexity and function, the team discovered. Each component helps guide the proper formation of the other components.

In a significant step forward in regenerative medicine, scientists at Cincinnati Children’s report success at developing a stomach organoid so sophisticated that it has distinct glands and nerve cells that can control smooth muscle contractions.

The achievement demonstrates that separate layers and portions of complex organs can be grown from separate lines of human pluripotent stem cells (PSCs) and be combined for continued development. And the approach used to produce these multi-layered stomach organoids also can be used to make more-complex versions of other lab-grown organs.

“This advance in tissue engineering is important because we can now assemble complex organ tissues from separately derived components, similar to an assembly line approach,” says corresponding author James Wells, PhD.

The findings were published Dec. 1, 2021 in Cell Stem Cell by Wells and lead author Alexandra Eicher, PhD. Collaborating co-authors from Cincinnati Children’s included Daniel Kechele, PhD, Nambirajan Sundaram, PhD, H. Matthew Berns, DO, Holly Polling, Lauren Haines, BS, J. Guillermo Sanchez, BS, Mansa Krishnamurthy, MD, MSc, Lu Han, PhD, Michael Helmrath, MD, and Aaron Zorn, PhD. Keishi Kishimoto, PhD, from the RIKEN Center for Biosystems Dynamics Research in Japan also was a co-author.

Making a Three-Layered Stomach Organoid

Making a Three-Layered Stomach Organoid

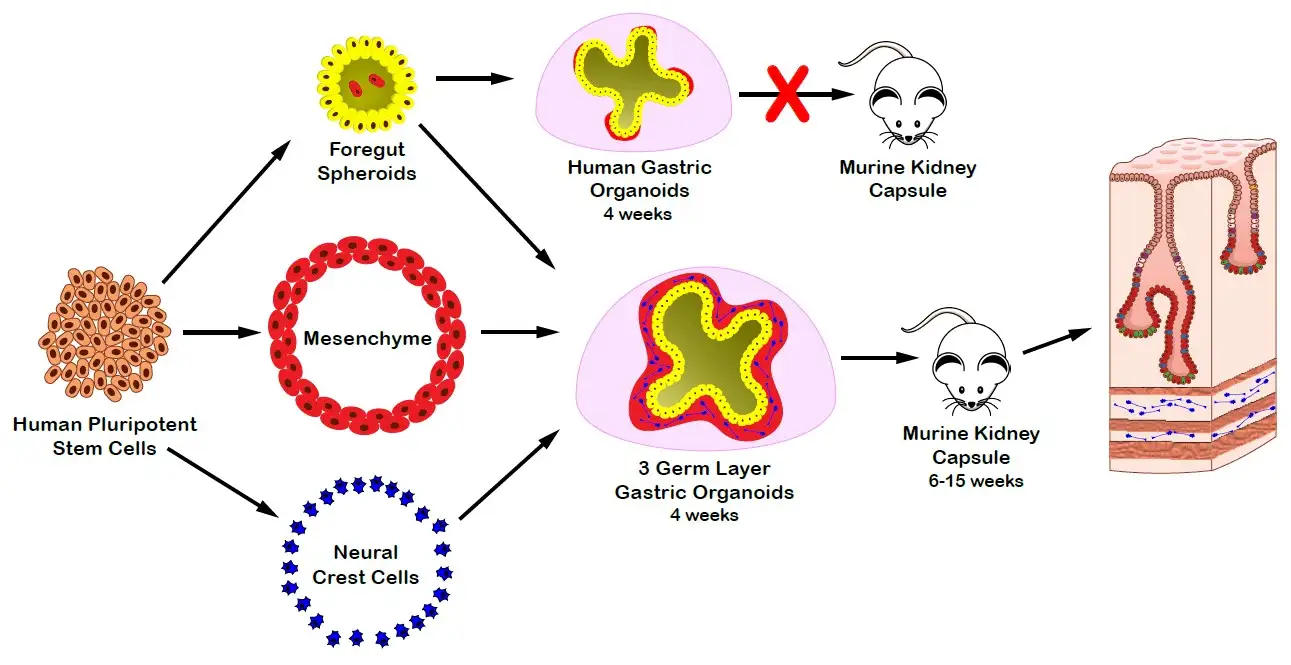

This illustration shows the process used by Cincinnati Children’s researchers to make the most complex stomach organoid to date.

Layer-by-Layer Assembly

Most organoids made so far can form 3D structures involving multiple cell types. In a lab dish, these tiny organs perform real functions that provide new opportunities to study diseases and develop cures. But they typically are missing a variety of cell types that would be needed to produce a full-sized functional organ. Some might not have key nerve fibers, internal blood vessels, or other critical ducts and glands that would be needed to connect the organ to the rest of the body’s systems.

This new stomach organoid does not yet have every cell type it needs, but it represents a leap forward.

“We started with cells from the three primary germ layers–enteric neuroglial, mesenchymal, and epithelial precursors–all separately derived from PSCs,” Eicher says. “From these we generated stomach tissue that contained acid-producing glands, surrounded by layers of smooth muscle containing functional enteric neurons that controlled contractions of the engineered antral stomach tissue.”

Importantly, the development of these mini human stomachs was not limited to a thin layer of medium in a lab dish. Once the organoids reached a critical stage (at about 30 days) the team performed microsurgery to transplant the organoids into a mouse, which provided the blood flow and biological space to allow much more growth.

Instead of spheres of cells that look like dots in a dish, these organoids grew a thousand-fold in volume inside the mice to form mini organs plainly visible to the naked eye.

When viewed under a confocal microscope, with different cell types stained to glow in different colors, these organoids radiate a rainbow of complexity.

In fact, the lab-grown tissue closely resembles naturally grown human tissue at similar stages of development. This new organoid even began developing a Brunner’s gland, which secretes an alkaline mucus that protects the duodenum (the top part of the intestine) from the acidity of stomach contents as they begin flowing through.

The team also discovered that all these individual components are needed in order to generate stomach tissue with the proper complexity and function. Each component helps guide the proper formation of the other components. For example, the authors found that if they did not add the nerves during the assembly process the stomach glands and muscle did not form properly.

→

This microscope brightfield image shows a transplanted three-germ layer human stomach organoid growing in a mouse at 10 weeks. At 4 weeks the organoid was about 1 mm in diameter. By 10 weeks it had grown to nearly 1 cm in diameter and more than one-hundred-fold in total volume.

Immediate and long-term potential

In addition to demonstrating a three-layered approach for developing stomach organoids, the team also applied a similar approach to make a more sophisticated esophageal organoid.

At a minimum, these more-complex organoids will serve as useful tools for studying genetic variations and other cell signaling dysfunctions that contribute to gastric diseases—and can serve as improved platforms for evaluating potential treatments. But there may be even wider-scale impact from these findings.

“Given that this technology is broadly translatable to other organs, it is possible that engineered tissue might be a source of material for reconstructing elements of the upper GI tract that are damaged by congenital disorders or acute injuries,” Wells says.

While much works remains to develop organoid tissue that would be suitable for transplantation, much progress also has been made.

“Members of this team, with a recent grant awarded from Cincinnati Children’s Hospital, are now working to scale up production of therapeutic quality organoid tissues with the goal of transplantation into patients by the end of the decade,” Wells says.

Leader in regenerative medicine

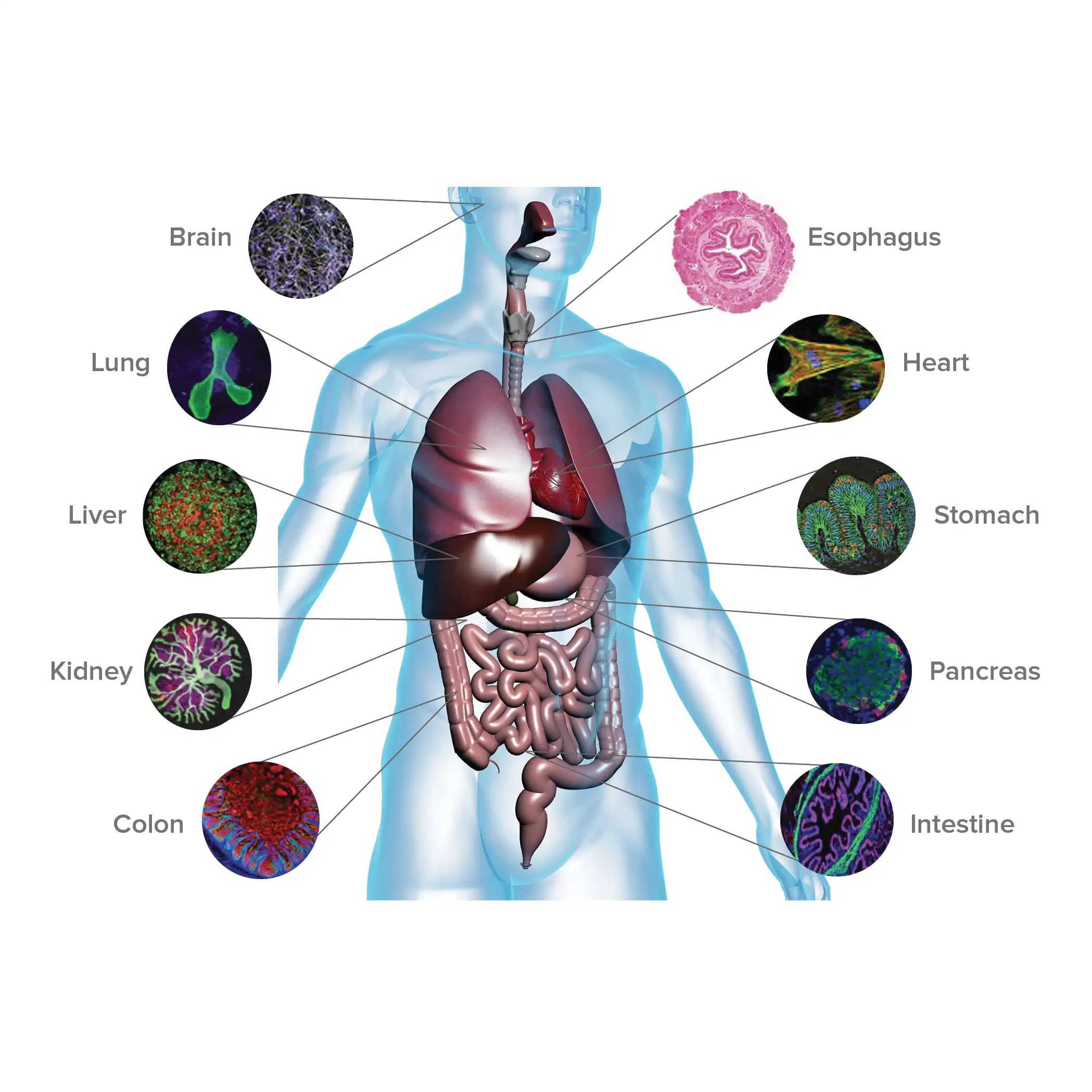

Cincinnati Children’s has played a leading role in organoid research since 2010 when Wells and colleagues published findings in Nature reporting their first success at developing functional intestinal tissue. In 2019, the medical center launched its Center for Stem Cell and Organoid Medicine (CuSTOM) to further accelerate the work.

Over the years, the growing team has:

Read more about organoid research at Cincinnati Children’s https://scienceblog.cincinnatichildrens.org/category/organoids

→
Next steps

The Helmrath lab at Cincinnati Children’s has begun work to expand this line of research beyond mice. While this approach will add important insights at the laboratory level, the research team does not believe that using animals as hosts to continue growing human organs will be the ultimate method for transplanting organoid tissue into human patients.

“Growing full-sized organs for clinical purposes would require GMP (a set of Good Manufacturing Practice regulations established by the U.S. Food and Drug Administration to assure consistency and safety) and that would probably exclude the possibility of using animal hosts to continue growth,” Eicher says. “So we would need a way to grow organoids larger without a host. This would require a way to mimic active nutrient and gas exchange in vitro.”

 About this study

This research was supported by the grants from the NIH, U18 EB021780 (JMW, MAH), U19 AI116491 (JMW), P01 HD093363 (JMW), UG3 DK119982 (JMW), U01 DK103117 (MAH), 1F31DK118823-01 (AKE), NIEHS 5T32-ES007250-29 (DOK), the Shipley Foundation (JMW), and the Allen Foundation (JMW). We also received support from the Digestive Disease Research Center (P30 DK078392).

Publication Information

Original Title:Engineering functional human gastrointestinal organoid tissues using the three primary germ layers separately derived from pluripotent stem cells
Published in:Cell Stem Cell
Publish date:Dec. 1, 2021

Read the Study

Research By

  • Alexandra Eicher, PhD

    Alexandra Eicher, PhD

    Graduate Student, Wells Lab, 2016-2021

  • James Wells, PhD

    James Wells, PhD

    Chief Scientific Officer, Center for Stem Cell and Organoid Medicine (CuSTOM)

    Research in the Wells lab aims to uncover the molecular and cellular mechanisms by which gastrointestinal and endocrine organs form in the developing embryo.
