Organoid Success Reveals Polarity Defect and Potential Target for Future Treatment of Biliary Atresia

Research By Surya Amarachintha, PhD, Pranavkumar Shivakumar, MPharm, PhD, Jorge Bezerra, MD

Post Date: September 3, 2021 | Publish Date: Aug. 15, 2021

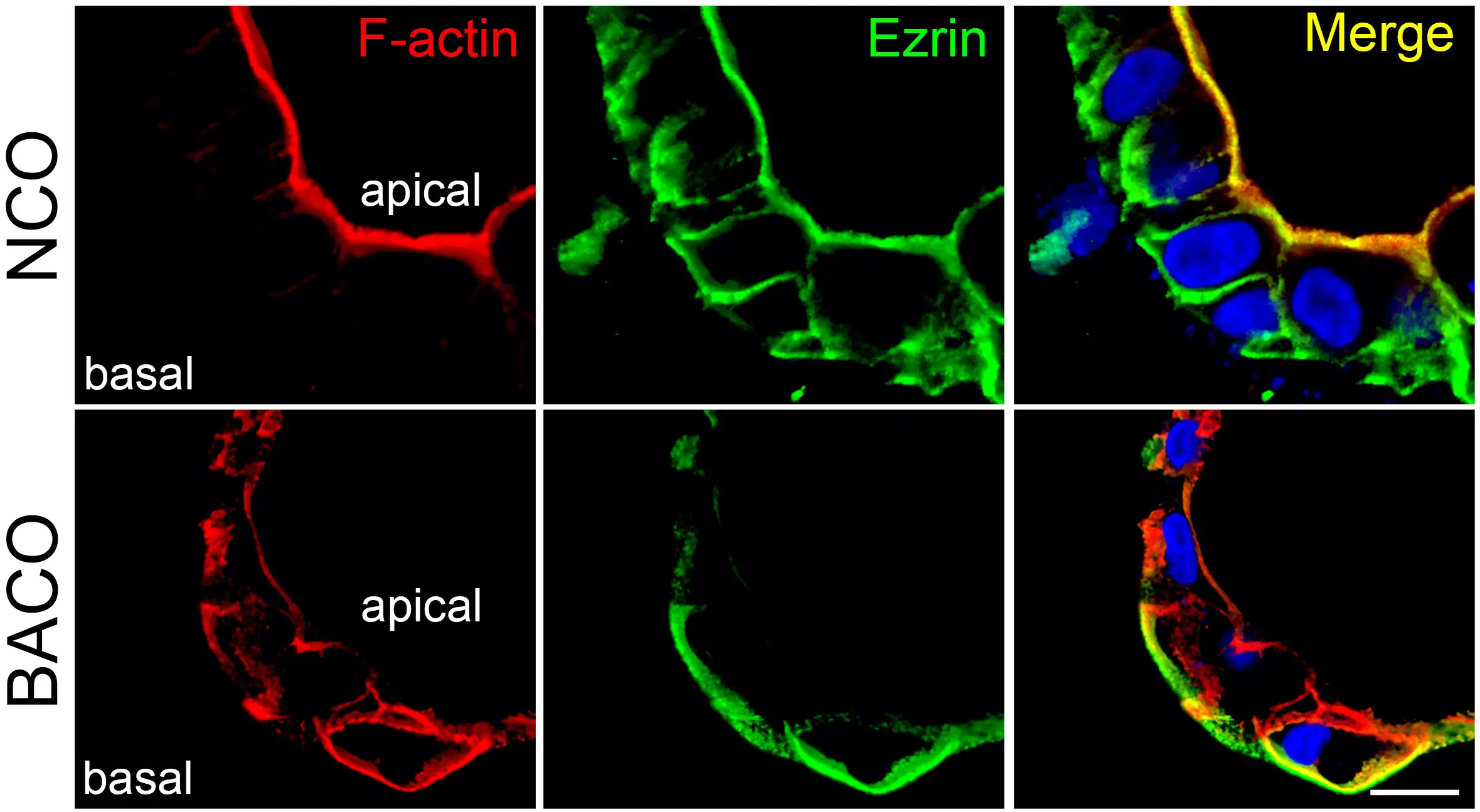

Cholangiocyte organoids from patients with biliary atresia show abnormal cell polarity by immunofluorescent staining

Cholangiocyte organoids from patients with biliary atresia show abnormal cell polarity by immunofluorescent staining

Top Row: Normal cholangiocyte organoids (NCO) from donor livers show apicobasal co-localization of F-actin (red) and Ezrin (green) signals showing polarized and normal cell morphology.
Bottom Row: Biliary atresia cholangiocyte organoids (BACO) derived from livers of BA patients show localization of F-actin (red) and Ezrin (green) to the basal region only denoting loss of polarity and abnormal cellular morphology.

Functional miniature biliary organoids grown from diseased tissues reveal previously unknown cell defects—and a potential repair approach

Biliary atresia is the largest cause of end-stage liver fibrosis in children and the main reason children need liver transplants. Despite many years of worldwide research, scientists have not yet found a way to prevent the condition.

Now, a study led by liver experts at Cincinnati Children’s reveals new details about the disease that point to an entirely new approach for treatment. The discoveries, published online Aug. 15, 2021, in the journal Hepatology, were made possible because the team succeeded at growing functional biliary organoids from diseased tissue.

“We developed these organoids without any genetic manipulation of cells, with cells growing from liver biopsies,” say Pranav Shivakumar, PhD, and Jorge Bezerra, MD, from the Division of Gastroenterology, Hepatology and Nutrition at Cincinnati Children’s and senior authors of the study. “This is important because we were able to study functioning human tissue from young children, rather than relying on fixed cell samples or mouse models that do not fully mimic human disease.”

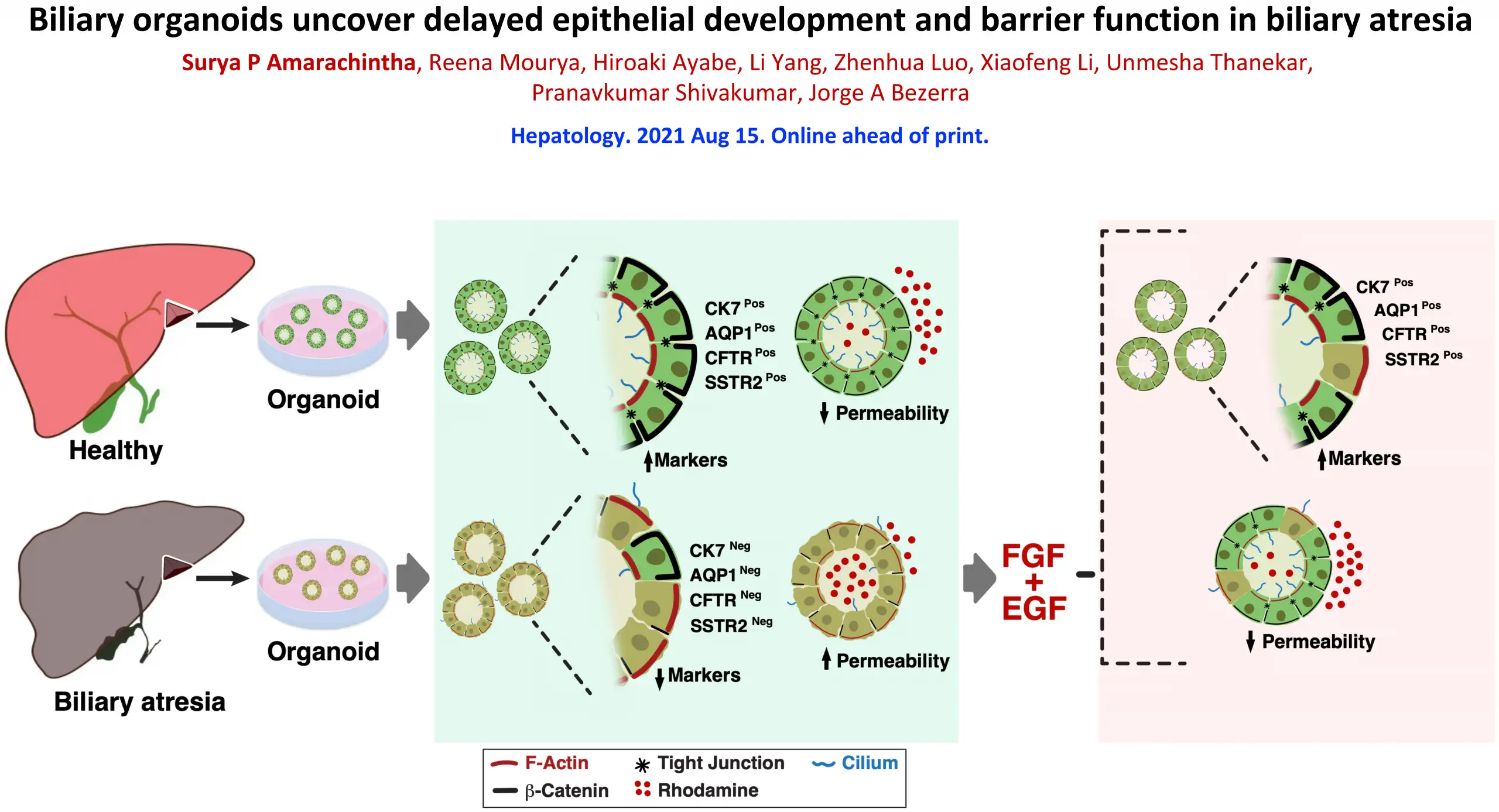

Organoids Reveal Cell Malformations in Biliary Atresia

Organoids Reveal Cell Malformations in Biliary Atresia

After observing cell polarity and permeability errors in diseased organoids, researchers activated FGF2 and EGF to reverse most of the defects.

Observing a disease process in a dish

By comparing diseased organoids to others grown from healthy liver samples, the researchers detected several structural defects occurring in the cells that form the tiny tubes that carry bile acids away from the liver—a critical aspect of the digestion process.

Healthy biliary organoids form spheres of tightly bound cells that assume a shape much like candy corn. This shape helps the cells orient themselves to develop inner and outer surfaces with distinct functions.  The top end of the cells point inward, with each cell extending a hair-like cilium into the center of the sphere. The wider bottom ends of the cells form a protective outer layer.

View video summary at the end of this post

However, the cells in the diseased organoids formed disorganized linings. Some cells were flipped so that their cilia pointed outside. Meanwhile, instead of tight leak-proof bonds between the cells, the lining showed erratic gaps between cells that allowed external materials to get inside.

“The lining of these epithelial cells form the bile duct that allows the normal flow of bile from the liver to the intestine and prevent the biliary duct walls from being harmed by the bile acids they transport,” Bezerra says. “If the lining is not tight, it allows bile acids and other substrates to leak into the duct wall which irritates the cells and leads to inflammation that destroys the biliary system. When this happens, the liver develops fibrosis and can progress to liver failure in children.”

Rescuing defective ducts appears possible

Showing the permeability problem was a breakthrough in itself, made possible only through studying functioning organoids. In humans, this malfunction would begin early in fetal development, well before any tissue samples could be collected to detect the poor duct formation.

Studying the organoids, the researchers detected cell signaling differences between the diseased and healthy organoids that may be the cause of abnormal in biliary organoid formation. These signals were related to fibroblast growth factor-2 (FGF2) and epidermal growth factor (EGF).

“When we reactivated these pathways, we saw that many more of the cells in diseased organoids developed correctly. The treated organoids were not perfect, but they were much closer to normal, which suggests they might be able to support adequate liver function,” Shivakumar says.

When treated with EGF and FGF2, the biliary atresia organoids showed improved polarity, decreased permeability and expressed biomarkers indicating near-normal function, the study reports.

The research team that achieved this success includes first author Surya Amarachintha, PhD, and co-corresponding author Pranavkumar Shivakumar, MPharm, PhD, both from Cincinnati Children’s. The team also collaborated with colleagues at the First Affiliated Hospital and Third Affiliated Hospital of Sun Yat-Sen University, Guangzhou, China.

Next Steps

Several more steps are needed to move this lab dish discovery to treatment, Bezerra says.

  • The researchers have begun work to confirm that children with biliary atresia also show down-regulated FGF2 and EGF pathways.
  • The team also needs to determine if there are existing drugs that activate FGF2 and EGF, specifically in the biliary ducts, that also would be safe for infants. If not, perhaps a new drug could be developed.
  • Ultimately, any potential treatment would require a clinical trial to determine if the treatment changes outcomes, such as dramatically suppressing the progressive fibrosis with the goal to avoid a liver transplant.
About this study

This research was supported by grants from the National Institutes of Health (DK64008, DK83781, and DK78392)



Publication Information

Original Title:Biliary organoids uncover delayed epithelial development and barrier function in biliary atresia
Published in:Hepatology
Publish date:Aug. 15, 2021

Read the Findings

Research By

  • Surya Amarachintha, PhD

    Surya Amarachintha, PhD

    Division of Gastroenterology, Hepatology and Nutrition

  • Pranavkumar Shivakumar, MPharm, PhD

    Pranavkumar Shivakumar, MPharm, PhD

    Division of Gastroenterology, Hepatology and Nutrition

    Dr. Shivakumar is investigating the mechanistic role of innate immunity in the pathogenesis of biliary atresia focusing on NK- and T-cells and complement components in the initiation and propagation of inflammatory duct injury and obstruction.

  • Jorge Bezerra, MD

    Jorge Bezerra, MD

    Director, Division of Gastroenterology, Hepatology and Nutrition

    The Bezerra Laboratory investigates regulatory mechanisms of liver and biliary injury.
